Run programs

Use the Program Operator to deploy robot programs for operators. It provides:

• No-code operation: Start, stop, and configure programs without programming
• Hardware validation: Validates correct robot hardware is connected before execution
• Parameter configuration: Adjust program behavior through form interface

Features

Usage

Installation

Install the Program Operator via the Wandelbots NOVA app store.

Register a program

To make a Python program available in the Program Operator, you need to register it using Novax.

Novax handles the lifecycle of programs, exposing them through the NOVA API and making them available to the Program Operator.

1. Open Visual Studio Code from the NOVA home screen.
2. Create or open a Python file containing your robot program decorated with @nova.program, e.g., start_here.py.
3. Open the registration script named register_programs.py.
4. Import your program module and pass your FastAPI app to Novax. Every imported @nova.program registers automatically.
5. Run the registration script to make your program discoverable.

from fastapi import FastAPI
from novax import Novax

# Importing the module registers its @nova.program functions
import your_nova_app.start_here  # noqa: F401

# Create FastAPI app
app = FastAPI(
    title="your_nova_app",
    version="0.1.0",
    description="An app that serves your robot programs",
)

# Include the programs API endpoints and register
# every imported @nova.program
novax = Novax(app)

# Run the app, e.g., with uvicorn

Novax also scans a programs directory by default. Drop a .py file with a @nova.program into it and the program is picked up without a manual import.

If the registration is successful, the VS Code terminal indicates that the program was successfully registered.

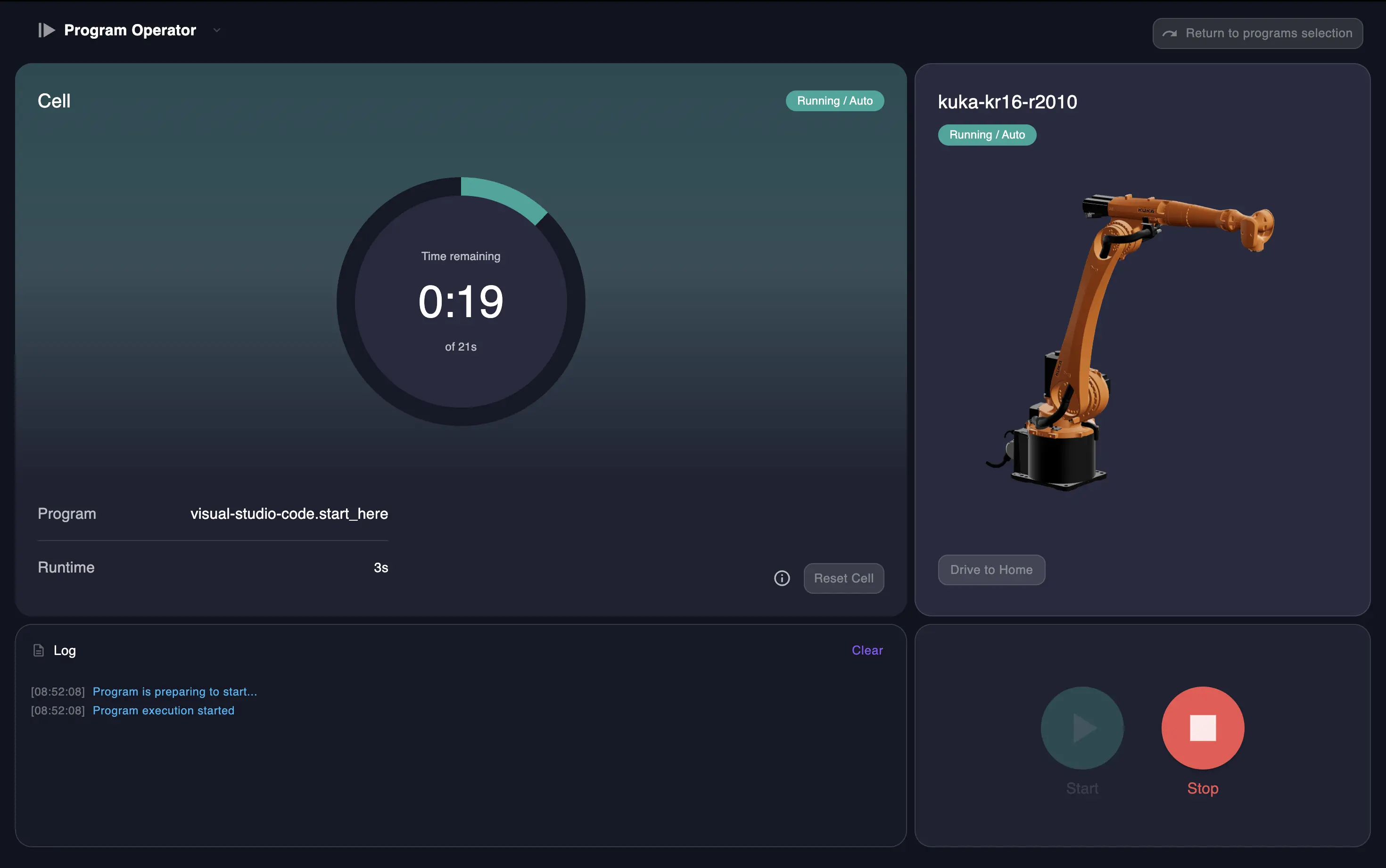

Execute a program

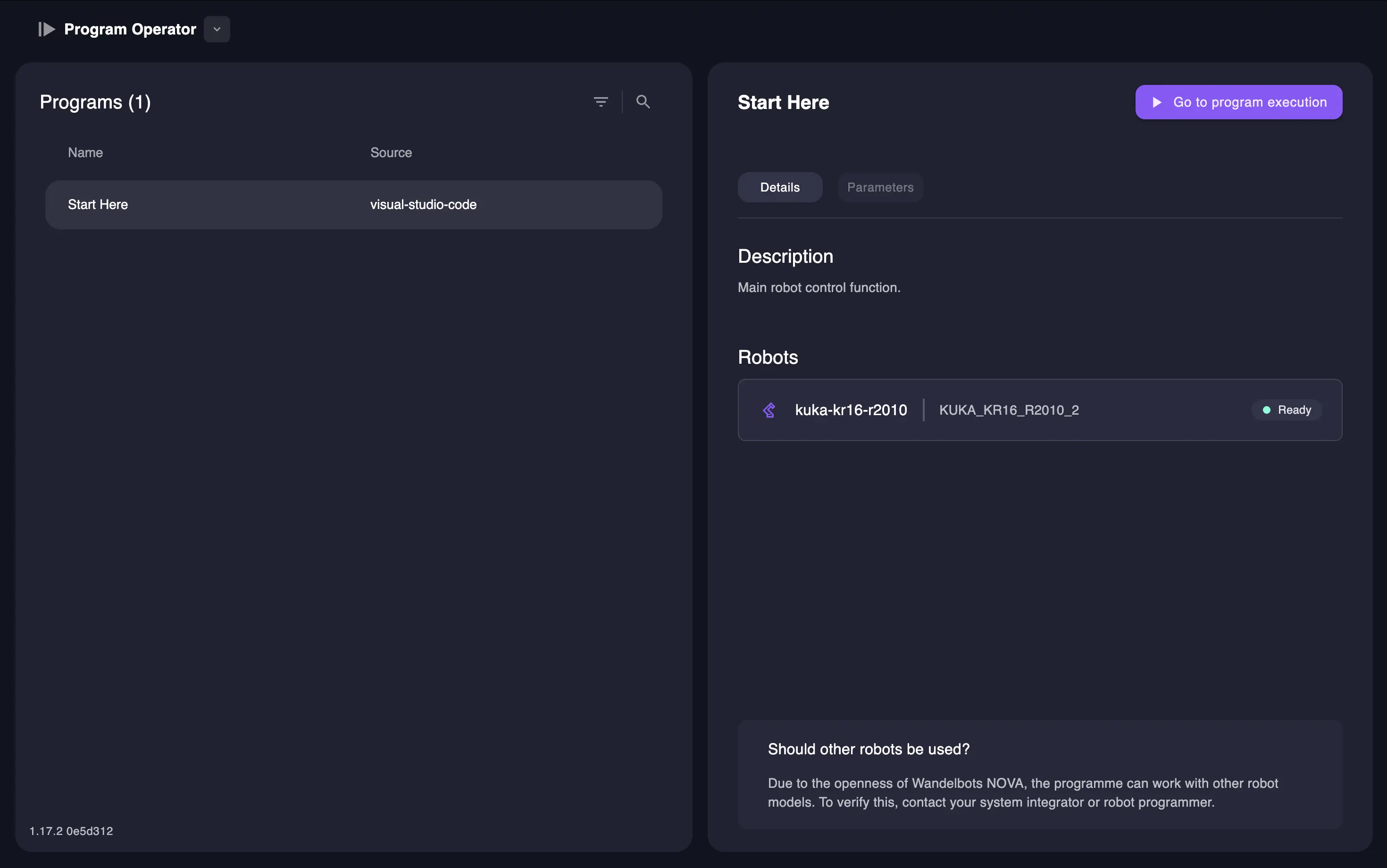

1. Select the desired program from the list.
2. Click Start to begin execution.
   During the first run, the Program Operator will measure the cycle time. Monitor the execution progress and countdown timer.
3. Click Stop to pause the program.

Program availability

Programs registered through Visual Studio Code can deregister when you close VS Code or restart the Wandelbots NOVA instance. To guarantee their availability in the Program Operator, deploy your programs as a persistent app. Learn how in deploy an app.

Cycle definition and metrics

Cycles are not automatically determined by the Program Operator. Explicitly define cycle boundaries in your program code using novax_cycle.

To enable cycle time tracking, you must instrument your program to define what constitutes a cycle. A cycle typically represents one complete iteration of your robot workflow, e.g., picking and placing one workpiece.

from nova.events import novax_cycle

@nova.program(
    id="example_program",
    name="Example Robot Program",
    # ... other configuration
)
async def start():
    async with Nova() as nova:
        cell = nova.cell()
        controller = await cell.controller("robot-name")

        # Define the cycle - this tells Program Operator what to measure
        cycle = novax_cycle(cell=cell, app="your_nova_app", program="example_program")

        async with controller[0] as motion_group:
            # Your robot setup code here

            # Mark the start of the cycle
            await cycle.start()

            # Your robot movements that constitute one cycle
            await motion_group.plan_and_execute(actions, tcp)

            # Mark the end of the cycle
            await cycle.finish()

Using configurable function parameters

1. Navigate to the Parameters tab in the Program Operator.
2. Enter the desired values for each parameter.
3. Start the program.
   The custom configuration will be applied. If parameters affect the execution speed, the cycle time will be re-measured.

Next steps

Refine your program with advanced configuration options in the declare a program documentation.

Troubleshooting

Robot disconnected → Configure the required robot

The Program Operator performs a check to ensure the robot required by your program is configured in the cell before allowing program execution.

If you see a Robot disconnected error after registration:

1. Open the Setup application from the NOVA home screen.
2. Add the robot required by your program to the cell.
3. Ensure the robot name and model match exactly what the program expects.
4. For virtual robots, select “Virtual” as the robot type, then choose the correct manufacturer and model.

Once the robot is configured and shows connected in Setup, return to the Program Operator. The program status will show ready and is ready for execution.

Cell errors when using the Program Operator

Use the Restart cell button to stop and restart all NOVA robot services.

If you loose connection to the Wandelbots NOVA instance during the restart, the cell might not restart automatically. In this case, use Cell > Operating State to restart the cell manually. The restart can take up to a couple of minutes.
